Audio Conferencing System

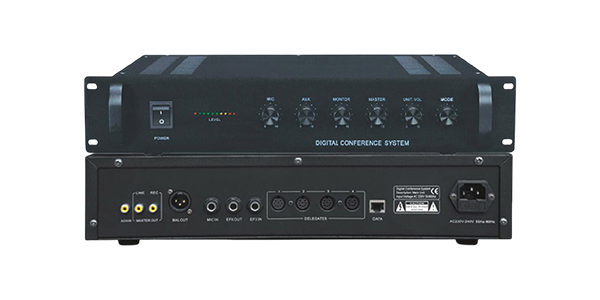

Conference System HT-3000

The HTDZ HT-3000 Conference System Main Unit is designed to manage audio communication in corporate boardrooms, meeting rooms, and conference facilities. It supports up to 60 chairman and delegate microphone units, with expansion options for larger conferences. Featuring a built-in monitoring speaker, multiple discussion modes, and video camera auto-tracking support with a compatible processor, it offers a practical solution for organized business meetings.

    Features
  • The main unit can support 60 microphone units, it could be extended to support 250 units with the extension power unit
  • Built-in monitoring loudspeaker
  • Support video camera auto-track with video processor
  • Support discuss & Video Chairman with priority button Built-in internal speaker

Audio Conferecning System in Pakistan - Conference System HT-3000

The HTDZ HT-3000 Conference System Main Unit provides centralized control for professional conference and discussion systems. Designed for business meetings, corporate boardrooms, educational institutions, and conference facilities, it supports up to 60 chairman and delegate microphone units, with the capacity to expand the system using an extension power unit. Its built-in monitoring speaker allows users to monitor conference audio, while multiple operating modes, including Free and Limit modes, help manage participation during discussions. The four 8-pin DIN system connections support microphone unit integration, and compatibility with the HT-8008 video processor enables automatic camera tracking for video conferencing applications. With multiple audio input and output connections and a rack-mountable design, the HTDZ HT-3000 is a suitable choice for organizations seeking a centralized conference audio management solution.

Specifications

View Datasheet

Power Supply
AC110V/240V, 50Hz~60Hz
Consumption rating
500W
T.H.D
0.05%
S/N Ratio
75dB
Frequency response
100Hz—18kHz
Color
Black
Net weight
9.3 Kg
Audio output
RCA×4, 6.33mm×1
Audio input
Φ6.3×2
operating modes
Free, Limit 1/2/3/5
System outlets
8P-DIN x4
System Connection
8-PIN DIN×4
Dimension (mm)
480x360x85 (19”/2U)
