EyeRIS Interactive Devices

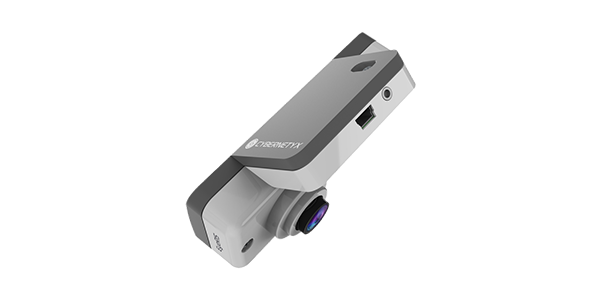

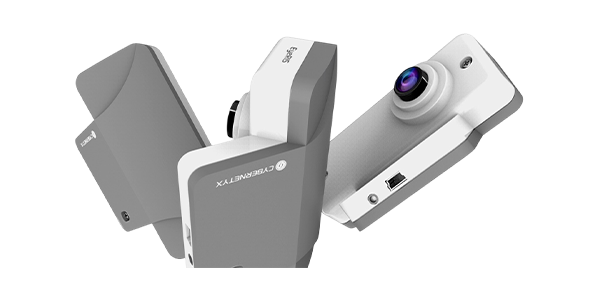

EyeRIS 10 Projection System

Transform ordinary walls and existing whiteboards into interactive learning surfaces with the EyeRIS 10 Interactive Smart Board Projection System.

    Features
  • Superior Ambient Light Disturbance Resistance.
  • Support for interactivity on Edge blended surface.
  • Ultra Short Focus Optics (T/R up to 0.16).
  • High-Speed Tracking.
  • Support for interactivity on Edge blended surface.

Interactive Smart Board Projection System – EyeRIS 10

Transform ordinary walls and existing whiteboards into interactive learning surfaces with the EyeRIS 10 Interactive Smart Board Projection System. Designed for modern classrooms, training centers, and collaborative workspaces, this innovative solution enables multi-touch interaction without requiring a dedicated interactive display. Its advanced super-capacitive stylus delivers a smooth, natural writing experience, allowing teachers and presenters to annotate, draw, and interact with projected content effortlessly. Weighing less than 30 grams, the lightweight stylus offers comfortable handling and recharges in just 180 seconds, eliminating the need for frequent battery replacements.

Specifications

View Datasheet

Movement Detection Technology
3D Optical
Tracking Active Area
Up to 100 inches (16:9 Wide Angle) and up to 80 inches (4:3 Aspect Ratio)
Vertical Viewing Angle
95°
Horizontal Viewing Angle
110°
Diagonal Viewing Angle
170°
Tracking Speed
60–70 FPS (Extrapolated up to 200 FPS)
Ambient Light Resistance Technology
Dual-Band Tracking Technology: 830 nm ± 20 nm (IR) and 650 nm ± 20 nm (Visible)
Simultaneous Touch Point Support
Up to 255 Touch Points (System Configuration Dependent)
Calibration Technology
Automatic and Manual Calibration
Operating & Storage Temperature
-10°C to +60°C
Operating & Storage Humidity
0%–95%
Response Time
Up to 195 Million Dots/Second
Data Refresh Rate
Up to 195 Million Dots/Second
USB Bandwidth
Approximately 200 Mbps
