Smart IP Conferencing Solution

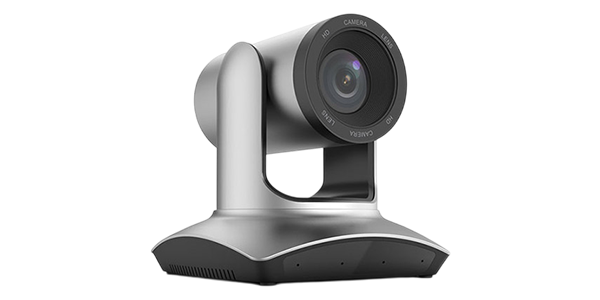

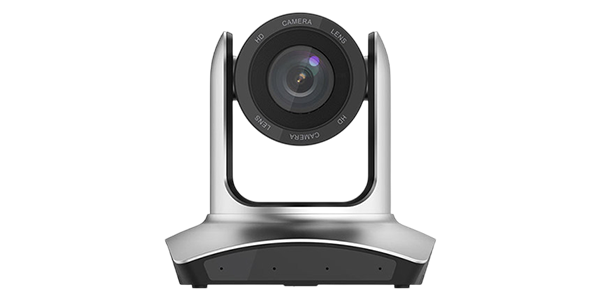

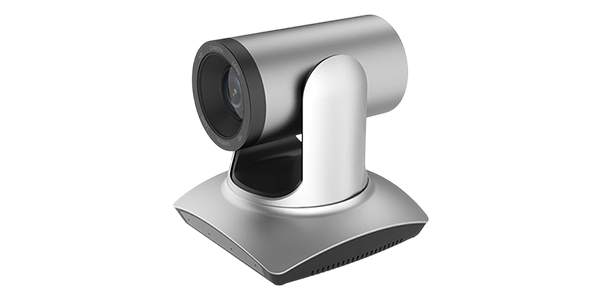

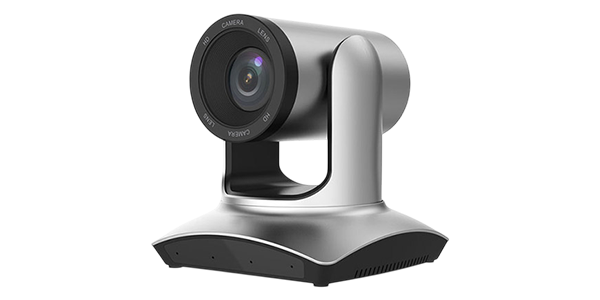

Smart IP 3012V PTZ CAM

The Smart IP 3012V PTZ CAM is a Full HD voice-tracking conference camera designed for video conferencing, online training, and professional presentations. Featuring 1080p video at 30fps, 12x–20x optical zoom, four built-in digital microphones with up to 10-meter voice pickup, and automatic speaker tracking, it delivers flexible audio and video coverage for meeting rooms and lecture spaces.

    Features
  • Voice Tracking
  • 4 Digital Microphones Array and 10 meters voice pickup
  • Wired connection with speakerphone /external microphone
  • Adopt AEC & ANS & AGC technology
  • The camera automatically rotates and tracks the voice

Smart IP Conferencing Solution in Pakistan - Smart IP 3012V PTZ CAM

The Smart IP 3012V PTZ CAM Voice Tracking Camera combines high-quality video capture with intelligent speaker tracking for professional conferencing environments. Its 1/2.8-inch CMOS sensor supports Full HD 1080p video at 30fps, while the pan-tilt-zoom mechanism and 12x–20x optical zoom help capture speakers and presentation details across the room. Four integrated digital microphones provide voice pickup from up to 10 meters, and automatic camera rotation follows the active speaker to support more engaging discussions. AEC, ANS, and AGC technologies help improve audio clarity by managing echo, noise, and microphone gain. With USB 3.0, HDMI, audio input/output connections, and an included infrared remote control, the Smart IP 3012V PTZ CAM is suitable for business meetings, distance learning, lecture capture, and live webcasting.

Specifications

View Datasheet

Image Sensor
1/2.8-inch CMOS Sensor, 2.2 MP Effective Pixels
Video Resolution
1920 × 1080, 1280 × 720, 640 × 480; up to 1080p at 30 fps
Optical Zoom
12X Optical Zoom (Standard Model); 20X Optical Zoom Model Available
Field of View
Horizontal: 61°–69.4° (Wide) to 3.64°–6.55° (Telephoto)
Microphone
4 Built-in Digital Microphones with Full-Duplex Audio
Voice Tracking
Automatic Voice-Based Camera Tracking
Focus Mode
Auto Focus
Pan and Tilt
Pan: -170° to +173°; Tilt: -30° to +90°
Video Output
USB 3.0 and HDMI
Dimensions (HxWxD)
180 × 180 × 172 mm
Net Weight (kg)
1.36 kg
USB Connection
USB 3.0 for Video; USB 2.0 for Camera Control
Operating Systems
UVC-Compatible Systems
Control Protocols
VISCA, PELCO-D, PELCO-P
Audio Processing
Acoustic Echo Cancellation (AEC), Automatic Noise Suppression (ANS), Automatic Gain Control (AGC)
Digital Zoom
20X Digital Zoom on the Standard 12X Optical Zoom Model
Preset Positions
Not Specified
Microphone Pickup Range
Up to 10 Meters
Minimum Illumination
0.1 Lux (F1.2)
Video Compression
MJPEG, H.264
Audio Sampling Rate
16 kHz / 48 kHz
Signal-to-Noise Ratio (SNR)
65.5 dB
Power Supply
DC 12V / 2A Power Adapter
Maximum Power Consumption
12W
Camera Control Interface
RS-232, USB 2.0, UVC
Operating Temperature and Humidity
-10°C to +50°C; 20% to 80% RH
Storage Temperature and Humidity
-10°C to +60°C; 20% to 95% RH
Package Contents
Smart IP CAM 3012V PTZ Camera, IR Remote Control, DC 12V Power Adapter
