Smart IP Conferencing Solution

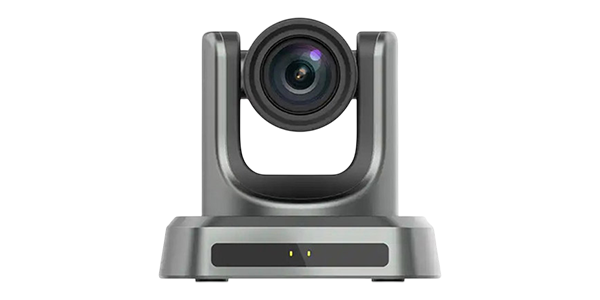

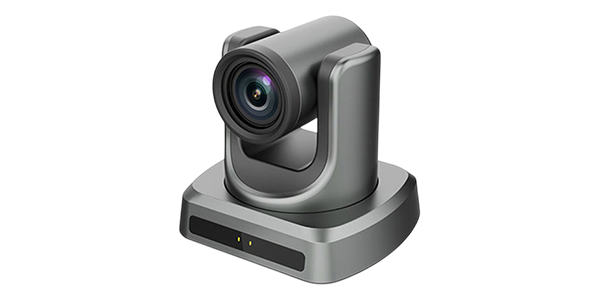

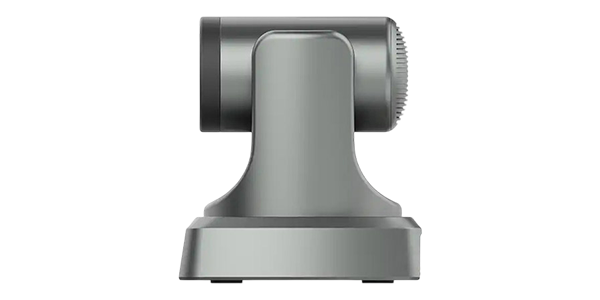

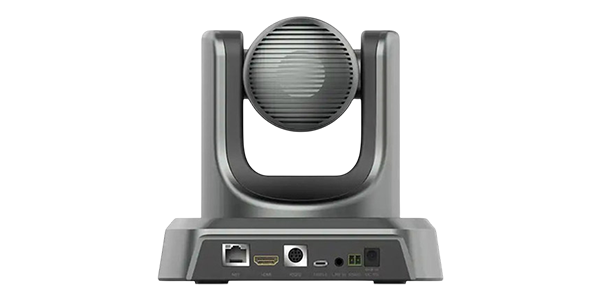

Smart IP 4KP912 PTZ CAM

The Smart IP 4KP912 PTZ CAM is a 4K Ultra HD conference camera designed for professional video conferencing, online meetings, and lecture recording. Featuring 12x optical zoom, 16x digital zoom, automatic framing, and USB connectivity, it delivers detailed video and flexible camera control for modern meeting rooms. Power over Ethernet (PoE) support simplifies installation, while optional HDMI output provides additional connectivity options.

    Features
  • The camera will auto Zooming by the participants movements
  • Compatible with USB3.0 & USB2.0. supports audio, encoding output, UVC 1.1-1.5 protocols
  • Sony 1/2.5" UHD CMOS sensor 8.51 million pixels, resolution 4K (3840x2160)
  • Support HDMI 1.4, can directly output uncompressed 4K original video
  • Real 8 million ultra-high resolution 4K lens, 12x optical zoom, horizontal FOV 71°
  • Image noise reduce CMOS sensor in low illumination conditions, 2D and 3D noise reduction algorithms, Image signal-to-noise ratio is above 55dB
  • Support POE (Power Over Ethernet), to control, supply power, video & audio transmission through a network cable

Smart IP Conferencing Solution in Pakistan - Smart IP 4KP912 PTZ CAM

The Smart IP 4KP912 PTZ CAM 4K Conference Camera combines high-resolution video capture with intelligent framing and versatile connectivity for professional conferencing environments. Its 8.5-megapixel CMOS sensor supports 4K video, while the 12x optical zoom and 16x digital zoom help capture participants and presentation details across the room. Automatic framing adjusts the camera view according to participants' movements, helping keep people in view during meetings. The camera supports USB plug-and-play connectivity, dual video streams, and H.264 and H.265 video encoding for flexible integration with compatible conferencing applications. Power over Ethernet (PoE) enables power and network connectivity through a single cable, while optional HDMI output supports direct video display. With low-light performance and pan-tilt-zoom control, the Smart IP 4KP912 is suitable for corporate meetings, video conferencing, lecture capture, and webcasting.

Specifications

View Datasheet

Camera Sensor
Sony 1/2.5-inch UHD CMOS Sensor, 8.51 Million Pixels
Video Resolution
4K (3840 × 2160) at up to 60 fps; 4K at 29.97/25 fps; 1080p at 30/29.97/25 fps
Field of View
Horizontal: 71° to 8.2°; Vertical: 42.7° to 4.5°
Optical Zoom
12X Optical Zoom
Auto Framing
Automatic Framing and Zooming Based on Participant Movement
Low Light Performance
0.5 Lux (F1.8, AGC On)
Video Compression
YUY2, MJPEG, H.264, H.265
Pan and Tilt
Horizontal Rotation: ±170°; Vertical Rotation: -30° to +90°
Video Output
USB 3.0, USB 2.0, and Optional HDMI 1.4b
Dimensions (HxWxD)
169 × 142 × 164 mm
Net Weight (kg)
1.35 kg
USB Connection
USB 3.0 and USB 2.0; UVC 1.1–1.5 Protocols
Operating Systems
Windows 7, Windows 8, Windows 10, macOS X, Linux, Android
HDMI Output
Optional HDMI 1.4b; Supports Uncompressed 4K Video Output
Digital Zoom
16X Digital Zoom
Preset Positions
255 Presets; Preset Accuracy: 0.1°
Digital Noise Reduction
2D and 3D Digital Noise Reduction
Minimum Illumination
0.5 Lux (F1.8, AGC On)
Video Coding Standards
H.264, H.265, MJPEG
Dual-Stream Support
Yes; Supports Two-Channel Video Stream Output
Signal-to-Noise Ratio (SNR)
More than 55 dB
Power Supply
DC 12V Adapter or PoE (802.3af)
Maximum Power Consumption
12W
Input Current
1.0A (DC 12V)
Operating Temperature
-10°C to 40°C
Storage Temperature
-40°C to 60°C
Network Interface
RJ45 Ethernet: 10/100/1000 Mbps; Adaptive Ethernet; PoE Support
Package Contents
Smart IP CAM 4K-P912 AutoFrame PTZ Camera; Power Adapter and Accessories as Supplied
