Smart IP Interactive Board

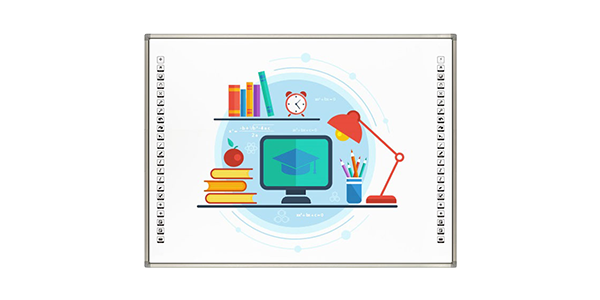

Smart IP Board 3A86

The Smart IP Board 3A86 Interactive Display offers a practical and engaging solution for modern classrooms, corporate meeting rooms, and professional training centers in Pakistan.

    Features
  • 86-inch Interactive Display
  • Infrared (IR) Touch Technology
  • 10-Point Multi-Touch Support
  • Fast Touch Response of Approximately 8ms
  • Durable Nano-Ceramic Anti-Damage Surface

Interactive Solution for Training Rooms – Smart IP Board 3A86

The Smart IP Board 3A86 Interactive Display offers a practical and engaging solution for modern classrooms, corporate meeting rooms, and professional training centers in Pakistan. Equipped with infrared/optical touch technology, it allows users to interact with digital content, deliver presentations, and conduct collaborative sessions with ease. Its responsive touch functionality supports interactive teaching, real-time annotations, and productive group discussions. Combined with user-friendly software solutions and access to ready-made educational content, the Smart IP Board simplifies lesson preparation and presentation management.

Specifications

View Datasheet

Model
Smart IP-3A86
Screen Size
86 Inches
Touch Technology
IR - Infrared Image Sensor System
Touch Points
10-Point Multi-Touch
Touch Response Time
Approx. 8ms
Touch Support
Finger, Pen, Pointer, or Any Opaque Object
Dimensions (mm)
1788 x 1281 x 39.5
Active Area
1732 x 1255 mm
Active Size
85 Inches
Touch Accuracy
<2mm
Resolution
32768 x 32768
Aspect Ratio
4:3
Surface Material
Nano/Ceramic, Cold Rolled Steel, Anti-Damage
Wick Material
High-Density Polyfoam
Back Material
Galvanized Steel Sheet
Certifications
CE, FCC, RoHS
Software
EdStudio and Calibration Software
Optional Software
Not Specified
Interface
USB 1.1, USB 2.0, USB 3.0
Cursor Speed / Scan Time / Sampling Rate
180 Dots/Points per Second
Driver Support (OS)
Windows 2000 - Windows 10, Linux, Mac, Android
Operating Temperature
-10°C to 45°C
Operating Humidity
10% - 90%
Storage Temperature
-30°C to 60°C
Storage Humidity
0% - 95%
L x W x H
1788 x 1281 x 39.5 mm
Power Supply
USB
Working Voltage
DC 5V ±5%
Working Current
100mA
