Smart IP Interactive Board

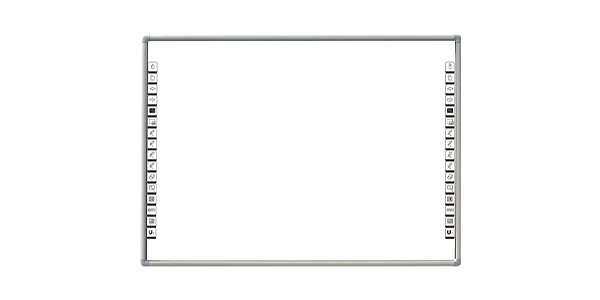

Smart IP Board INTC86

The Smart IP Board INTC86 Interactive Digital Whiteboard brings modern technology into classrooms, making teaching more engaging, interactive, and effective.

    Features
  • 86-Inch Interactive Display with Infrared (IR) Technology
  • 10-Point Multi-Touch with Gesture Recognition
  • Fast 8ms Response Time with Less Than 2mm Touch Accuracy
  • Durable Metal Projection Panel with EVA Nano Coating
  • Windows, Linux, Mac, and Android Compatibility

Digital Whiteboard for Conference Rooms – Smart IP Board INTC86

The Smart IP Board INTC86 Interactive Digital Whiteboard brings modern technology into classrooms, making teaching more engaging, interactive, and effective. Designed for schools, colleges, and educational institutions in Pakistan, this smart board features infrared/optical touch technology that allows teachers to write, draw, annotate, and explain lessons directly on the screen. Its responsive touch functionality encourages student participation and supports collaborative classroom activities. With user-friendly educational software and ready-made teaching content, educators can prepare lessons, present learning materials, and simplify complex topics.

Specifications

View Datasheet

Model
Smart IP-INTC86
Screen Size
86 Inches
Touch Technology
IR - Infrared Image Sensor System
Touch Points
10-Point Touch with Gesture Recognition
Response Time
8ms
Touch Support
Finger, Pen, Pointer, or Any Opaque Object
Dimensions (mm)
1780 x 1280 x 35
Active Area
1749 x 1209 mm
Active Size
68.8 x 47.5 Inches
Touch Accuracy / Position Precision
<2mm / ≤0.1mm
Resolution
32768 x 32768
Aspect Ratio
4:3
Surface Material
Metal Projection Panel / EVA Nano Coating / Aluminum Honeycomb
Back Material
Galvanized Steel Sheet
Certifications
CE, FCC, RoHS
Software
EdStudio and Calibration Software
Interface
USB
Cursor Speed / Scan Time / Sampling Rate
180 Dots/Points per Second, 16m/s at First Dot
Transmission Speed
12m/s
Driver Support (OS)
Windows 7, Windows 10, Linux, Mac, Android
Operating Temperature
-20°C to 60°C
Operating Humidity
10% - 90%
Storage Temperature
-30°C to 60°C
Storage Humidity
0% - 95%
L x W x H
1780 x 1280 x 35 mm
Power Supply
USB
Working Voltage
DC 5V ±5%
Working Current
100mA
